Introduction

TAPA (Teaching Assistant’s Personal Assistant) is a desktop app that allows TAs to better manage their student’s progress, especially for those who are teaching multiple classes/modules at the same time. It is optimised for use on a CLI.

TAPA’s developer guide is written for developers who wish to contribute to our project. The developer guide will explain the technical aspects of the inner workings behind TAPA, and how the various components will come together.

---

Acknowledgements

This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

---

Setting up, getting started

Refer to TAPA’s Quick Start Guide.

---

Design

Architecture

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

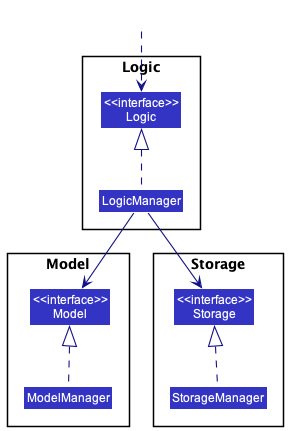

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point).

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the AddressBookParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a Person).
4. The result of the command execution is encapsulated as a CommandResult object which is returned from Logic.

The Sequence Diagrams below illustrate the interactions within the Logic component for the execute("delete 1") API call.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

The Model component,

• stores TAPA’s data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

The Storage component,

• can save both TAPA’s data and user preference data in json format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Add Command

Description

The add command allows users to add a particular student into TAPA. Since not all fields are compulsory during the execution of the add command, the user’s input is being parsed in AddressBookParser. After which, a new AddCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “add”, AddCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“add”).

4. In the AddCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of the compulsory fields are missing.

5. The AddCommandParser will pass the studentId input (found in the ArgumentMultimap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().
7. StudentId#isValidId(String studentId) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the AddCommandParser. If the argument is not valid, a ParseException will be thrown.

8. Step 5 to 7 will be repeated for the other compulsory fields (name, moduleCode) and optional fields (phone, telegramHandle, email), by using their respective parse methods in ParserUtil.

   Field	Parse Methods
   Index	parseIndex(String oneBasedIndex)
   StudentId	parseStudentId(String studentId)
   Name	parseName(String name)
   ModuleCode	parseModuleCode(String moduleCode)
   Phone	parsePhone(String phone)
   TelegramHandle	parseTelegramHandle(String telegramHandle)
   Email	parseEmail(String email)
   Task	parseTask(String task)

   Note: If an optional field is not supplied (i.e. not found in the ArgumentMultimap), the extra parsing process in steps 5 to 7 will be skipped. Instead, the respective object will be created and initialized to null.
9. The AddCommandParser will create a new Person.
10. A new AddCommand will be created (using the Person in Step 9) and returned to the LogicManager.
11. The LogicManager will then call AddCommand#execute(Model model).

12. In the AddCommand, the model#hasPerson(Person person) will be invoked. If the Person already exist in TAPA, a CommandException will be thrown.

    Note: In TAPA, two Person are considered as equal only if they have the same studentId.
13. The AddCommand will call model.addPerson(Person person), which adds the Person into the AddressBook.
14. Lastly, the AddCommand will create a new CommandResult, which will be returned to LogicManager.

The following sequence diagram shows how the add operation works:

Delete Command

Description

The delete command allows users to delete particular students from TAPA. Since not all fields are compulsory during the execution of the delete command, the user’s input is being parsed in AddressBookParser. After which, a new DeleteCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “delete”, DeleteCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“delete”).

4. In the DeleteCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of the compulsory fields are missing.

5. The DeleteCommandParser will pass the studentId input (found in the ArgumentMultimap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().

7. StudentId#isValidId(String studentId) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the DeleteCommandParser. If the argument is not valid, a ParseException will be thrown.

   Note: The above description for Steps 5 to 7 is specifically for when studentId is used as the input field. Depending on the type of input field used (StudentId or Index), Steps 5 to 7 will be executed using the parse methods in ParserUtil that are specific to the field. In the case of indices, an Index array is created in place of the StudentId.

   Field	Parse Methods
   Index	parseIndex(String oneBasedIndex)
   StudentId	parseStudentId(String studentId)
   Name	parseName(String name)
   ModuleCode	parseModuleCode(String moduleCode)
   Phone	parsePhone(String phone)
   TelegramHandle	parseTelegramHandle(String telegramHandle)
   Email	parseEmail(String email)
   Task	parseTask(String task)

8. A new DeleteCommand will be created (using the StudentId or Index array returned in Step 8) and returned to the LogicManager.
9. The LogicManager will then call DeleteCommand#execute(Model model).
10. In the DeleteCommand, a new StudentIdContainsKeywordsPredicate is created if StudentId was used as the input.
11. If StudentId was used, the model#updateFilteredPersonList(Predicate<Person> predicate) will then be invoked, which updates the filter of the PersonList to filter by the given StudentIdContainsKeywordsPredicate, after which the entry (if any) that matches the StudentIdContainsKeywordsPredicate will be deleted by invoking model#deletePerson(Person person).
12. Otherwise, if an Index array was used, a list of Persons corresponding to their Index in the displayed list will be created, after which they will be processed one by one for deletion.
13. Lastly, the DeleteCommand will create a new CommandResult, which will be returned to LogicManager.

The following sequence diagram shows how the delete operation works:

DeleteModule Command

Description

The deleteModule command allows users to delete all students of the inputted ModuleCode from TAPA. During the execution of the deleteModule command, the user’s input is being parsed in AddressBookParser. After which, a new DeleteModuleCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “deleteModule”, DeleteModuleCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“deleteModule”).

4. In the DeleteModuleCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of the compulsory field is missing.

5. The DeleteModuleCommandParser will pass the moduleCode input (found in the ArgumentMultimap) into ParserUtil#parseModuleCode(String moduleCode).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseModuleCode(String moduleCode), the supplied argument will be trimmed using String#trim().
7. ModuleCode#isValidModuleCode(String moduleCode) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new ModuleCode object will be created and returned to the DeleteModuleCommandParser. If the argument is not valid, a ParseException will be thrown.
8. The DeleteModuleCommandParser will create a new ModuleCodeContainsKeywordsPredicate.
9. A new DeleteModuleCommand will be created (using the ModuleCodeContainsKeywordsPredicate returned in Step 8) and returned to the LogicManager.
10. The LogicManager will then call DeleteModuleCommand#execute(Model model).
11. The model#updateFilteredPersonList(Predicate<Person> predicate) will then be invoked, which updates the filter of the PersonList to filter by the given ModuleIdContainsKeywordsPredicate.
12. Each Person that appears in the filtered list will then be deleted by invoking model#deletePerson(Person person).
13. Lastly, the DeleteModuleCommand will create a new CommandResult, which will be returned to LogicManager.

The following sequence diagram shows how the deleteModule operation works:

Find Command

Description

The find command allows users to find a particular student into TAPA. Since not all fields are compulsory during the execution of the find command, the user’s input is being parsed in AddressBookParser. After which, a new FindCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “find”, FindCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“find”).

4. In the FindCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of the compulsory fields are missing.

5. The FindCommandParser will pass the studentId input (found in the ArgumentMultimap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().

7. StudentId#isValidId(String studentId) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the FindCommandParser. If the argument is not valid, a ParseException will be thrown.

   Note: The above description for Steps 5 to 7 is specifically for when studentId is used as the input field. Depending on the type of input field used (studentId, name, moduleCode), Steps 5 to 7 will be executed using the parse methods in ParserUtil that are specific to the field.

   Field	Parse Methods
   Index	parseIndex(String oneBasedIndex)
   StudentId	parseStudentId(String studentId)
   Name	parseName(String name)
   ModuleCode	parseModuleCode(String moduleCode)
   Phone	parsePhone(String phone)
   TelegramHandle	parseTelegramHandle(String telegramHandle)
   Email	parseEmail(String email)
   Task	parseTask(String task)

8. The FindCommandParser will create a new Predicate.
9. A new FindCommand will be created (using the Predicate in Step 8) and returned to the LogicManager.
10. The LogicManager will then call FindCommand#execute(Model model).
11. In the FindCommand, the model#updateFilteredPersonList(Predicate<Person> predicate) will be invoked, which updates the filter of the PersonList to filter by the given Predicate.
12. Lastly, the FindCommand will create a new CommandResult, which will be returned to LogicManager.

The following sequence diagram shows how the find operation works:

Task Command

Description

The task command allows users to check and view all the tasks belonging to a particular student. During the execution of the task command, the user’s input is being parsed in AddressBookParser. After which, a new TaskCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AdddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “task”, TaskCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“task”).

4. In the TaskCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of StudentId is missing, as it is a compulsory field.

5. The TaskCommandParser will pass the studentId input (found in the ArgumentMultimap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().
7. StudentId#isValidId(String studentId) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the TaskCommandParser. If the argument is not valid, a ParseException will be thrown.
8. A new TaskCommand will be created (using the StudentId object created in Step 7) and returned to the LogicManager.
9. The LogicManager will then call TaskCommand#execute(Model model).
10. In the TaskCommand, a StudentIdContainsKeywordsPredicate is created using the studentId.
11. The model#updateFilteredPersonList(predicate) is then invoked such that the list is filtered by the predicate created.

12. The model#getFilteredPersonList() is then called. The size of the resulting list determines if there is any Person that corresponds to the specified studentId. If the size is equals to 0, a CommandException will be thrown.

    Note: The studentId is a UNIQUE field in TAPA, so multiple students cannot have the same studentId.
13. The Person object in the filtered list is then extracted out using model#getFilteredPersonList().get(0).
14. The TaskList belong to this Person can then be retrieved using Person#getTaskList().
15. If this TaskList is null or empty, a CommandException will be thrown.
16. The TaskCommand iterates through this TaskList, and categorises the tasks into two new TaskList according to the task’s completion status.
17. Lastly, the TaskCommand will create a new CommandResult by using the TaskList in Step 16. This CommandResult will then be returned to LogicManager.

Mark Command

Description

The mark command marks a specific undone task as done for a particular student. During the execution of the mark command, the user’s input is being parsed in AddressBookParser. After which, a new MarkCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “mark”, MarkCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word “mark”.

4. In the AddressBookParser#parseCommand(arguments), the arguments will be tokenized into an ArgumentMultiMap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of the compulsory fields are missing or if the arguments are invalid.

5. The MarkCommandParser will pass the studentId input (found in the ArgumentMultiMap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().
7. StudentId#isValidId(String studentId) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the MarkCommandParser. If the argument is not valid, a ParseException will be thrown.

8. The MarkCommandParser will pass the index input (found in the ArgumentMultiMap) into ParserUtil#parseIndex(Index index).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
9. In ParserUtil#parseStudentId(Index index), the supplied argument will be trimmed using String#trim().
10. Index#isValidId(Index index) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new Index object will be created and returned to the MarkCommandParser. If the argument is not valid, a ParseException will be thrown.
11. The MarkCommandParser will create a new MarkCommand object using the StudentId and Index created in Step 7 and 10 respectively.
12. The LogicManager will then call MarkCommand#execute(Model model).

13. The MarkCommand will call model#markTaskOfPerson(Student studentId, Index index), which marks the task (corresponding to the supplied index) of the given student as done.

    Note: A CommandException will be thrown if the supplied index or studentId is invalid, or if the task is already marked as completed.
14. Lastly, the MarkCommand will create a new CommandResult, which will be returned to LogicManager.

The following sequence diagrams shows how the mark command works:

Unmark Command

Description

The unmark command marks a specific done task as undone for a particular student. During the execution of the unmark command, the user’s input is being parsed in AddressBookParser. After which, a new UnmarkCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “unmark”, UnmarkCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word “unmark”.

4. In the AddressBookParser#parseCommand(arguments), the arguments will be tokenized into an ArgumentMultiMap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of the compulsory fields are missing or if the arguments are invalid.

5. The UnmarkCommandParser will pass the studentId input (found in the ArgumentMultiMap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().
7. StudentId#isValidId(String studentId) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the UnmarkCommandParser. If the argument is not valid, a ParseException will be thrown.

8. The UnmarkCommandParser will pass the index input (found in the ArgumentMultiMap) into ParserUtil#parseIndex(Index index).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
9. In ParserUtil#parseStudentId(Index index), the supplied argument will be trimmed using String#trim().
10. Index#isValidId(Index index) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new Index object will be created and returned to the UnmarkCommandParser. If the argument is not valid, a ParseException will be thrown.
11. The UnmarkCommandParser will create a new UnmarkCommand object using the StudentId and Index created in Step 7 and 10 respectively.
12. The LogicManager will then call UnmarkCommand#execute(Model model).

13. The UnmarkCommand will call model#unmarkTaskOfPerson(Student studentId, Index index), which marks the task (corresponding to the supplied index) of the given student as undone.

    Note: A CommandException will be thrown if the supplied index or studentId is invalid, or if the task is already marked as not complete.
14. Lastly, the UnmarkCommand will create a new CommandResult, which will be returned to LogicManager.

The following sequence diagrams shows how the unmark command works:

Clear Command

Description

The clear command deletes all students currently stored in TAPA. Before all the students are deleted, the user will have to confirm their decision by inputting “confirm”.

Implementation

1. When the user inputs “clear”, the LogicManager parses the given input text using AddressBookParser#parseCommand().
2. A new ClearCommand is created by AddressBookParser and returned to the LogicManager.
3. The LogicManager calls ClearCommand#execute(Model model), which returns a new CommandResult object (with its isClearRequest field set to true) to the LogicManager.
4. The CommandResult (with its isClearRequest field set to true) is then returned to the MainWindow.

5. To confirm the user’s decision to clear TAPA, the MainWindow executes MainWindow#handleClearRequest() which updates the CommandBox to only recognise a “confirm” input for the next command.



   Note: A CommandException will be thrown if the user inputs anything other than “confirm” for the next input. The CommandBox will then return to its normal operation, accepting all commands as described in the user guide.



6. If the user inputs “confirm”, the LogicManager parses the given input text using AddressBookParser#parseCommand(), then a new ConfirmClearCommand is created and returned to the LogicManager.
7. The LogicManager will then call ConfirmClearCommand#execute(Model model).
8. The ConfirmClearCommand calls Model#setAddressBook(new AddressBook()) which resets the current list of students stored in TAPA to an empty list.
9. Lastly, the ConfirmClearCommand creates a new CommandResult, which is returned to the LogicManager.

Design considerations

Aspect: How TAPA confirms the user’s decision to clear TAPA

• Alternative 1 (current choice): Have the user input “confirm”, which is treated by TAPA as a command being executed.
  • Pros: Easy to implement and test. Having the user type “confirm” is an added safety measure to ensure the user does not clear TAPA accidentally.
  • Cons: The user would take a longer time to clear TAPA than if a “confirm” button is implemented.
• Alternative 2: Have a pop-up window with a “confirm” button which the user can click to confirm or cancel their decision.
  • Pros: Faster to click a button than having to type “confirm” to clear TAPA.
  • Cons: More difficult to implement and test as it involves extending the UI.

Archive Command

Description

The archive command allows users to save the current state of the data in TAPA, into a separate .json file. This newly created file can be found in the same folder as the original data file (in /data). In addition, it will have a file name that corresponds to the date and time (up to 6 significant figures) in which the command is being called. This ensures that files created will have a unique file name in most cases.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “archive”, ArchiveCommand() will be called.
4. As ArchiveCommand utilizes the default constructor, it simply returns a new ArchiveCommand object to the AddressBookParser.
5. This ArchiveCommand object will then be subsequently returned to the LogicManager.
6. The LogicManager calls ArchiveCommand#execute(Model model).
7. In ArchiveCommand, the Path to the existing AddressBook is extracted, by calling model#getAddressBookFilePath().
8. Similarly, the existing AddressBook is also extracted, by calling model#getAddressBook().
9. With the help of the DateTimeFormatter and LocalDateTime in the Java 8 Date Time API, the file name and path of the new .json data file can be obtained.
10. The new .json data file can now be created, using FileUtil.createIfMissing(newPath). A CommandException will be thrown if ArchiveCommand fails to create this file.
11. The current copy of the AddressBook can be “copied” into a new JsonSerializableAddressBook, which will be used to populate the new .json data file that was created (by utilizing JsonUtil#saveJsonFile(T JsonFile, Path path)). A CommandException will be thrown if ArchiveCommand fails to populate the data file.
12. Lastly, the ArchiveCommand will create a new CommandResult, which will then be returned to LogicManager.

Assign Command

Description

The assign command allows users to assign tasks to student. During the execution of the assign command, the user’s input is being parsed in AddressBookParser. After which, a new AssignCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AdddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “assign”, AssignCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“assign”).

4. In the AssignCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefex... prefixes).

   Note: A ParseException will be thrown if the prefix of Task is missing, or if either the prefix of StudentId or ModuleCode is missing, as they are compulsory fields.

5. The AssignCommandParser will pass the studentId input (found in the ArgumentMultimap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().

7. StudentId#isValidId(String studentId) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the AssignCommandParser. If the argument is not valid, a ParseException will be thrown.

   Note: The above description for Steps 5 to 7 is specifically for when studentId is used as the input field. In the case of moduleCode, the Module prefix will be used to tokenize the input. Depending on the type of input field used (studentId or moduleCode), Steps 5 to 7 will be executed using the parse methods in ParserUtil that are specific to the field. The argument’s validity would be checked in their respective classes as well.

8. The AssignCommandParser will pass the task input (found in the ArgumentMultimap) into ParserUtil#parseTask(String task).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
9. In ParserUtil#parseTask(String task), the supplied argument will be trimmed using String#trim().

10. Task#isValidTaskName(String task) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new Task object will be created and returned to the AssignCommandParser. If the argument is not valid, a ParseException will be thrown.

11. A new AssignCommand will be created (using the StudentId or ModuleCode object and Task object created) and returned to the LogicManager.

12. The LogicManager will then call AssignCommand#execute(Model model).

13. If StudentId is used, AssignCommand#assignTaskToPerson(StudentId studentId, Task task) method will be invoked, which will in turn invoke model#assignTaskToPerson(StudentId studentId, Task task) method and AddressBook#assignTaskToPerson(StudentId studentId, Task task) method. If ModuleCode is used, AssignCommand#assignTaskToAllInModule(ModuleCode moduleCode, Task task) method will be invoked, which will in turn invoke model#assignTaskToAllInModule(ModuleCode moduleCode, Task task) method and AddressBook#assignTaskToAllInModule(ModuleCode moduleCode, Task task) method.

14. If StudentId is used, UniquePersonList#assignTaskToPerson(StudentId studentId, Task task) method is called. If ModuleCode is used, UniquePersonList#assignTaskToAllInModule(ModuleCode moduleCoded, Task task) is called. This will iterate through each Person object and check for matching studentId or moduleCode.

    Note: If no student(s) with a matching studentId or moduleCode is found, then PersonNotFoundException or ModuleCodeNotFoundException will be thrown.

15. If a Student object with matching studentId or moduleCode is found the method uses Person#isTaskAlreadyPresent(Task task) method to check if the task is assigned. If no similar task is found, the following step will take place.

    Note: If all the student(s) has already been assigned that task, then DuplicateTaskException will be thrown. If some, not all students in the moduleCode has already been assigned that task, then PartialDuplicateTaskException will be thrown.
16. The method gets copy of the Student object by invoking Person#getCopy() method. The copy is updated to include task by invoking Person#addTask(Task task).
17. Person#addTask(Task task) method will invoke TaskList#addTask(Task task), which adds the task to a list of assigned tasks.
18. The model#updateFilteredPersonList(PREDICATE_SHOW_ALL_PERSONS) is then invoked such that the list is filtered by the predicate created. In this case all the students will be in the filtered list.
19. Lastly, the AssignCommand will create a new CommandResult, which will be returned to LogicManager.

Progress Command

Description

The progress command allows users to view the completion status of all students who are taking a particular module and are assigned to a particular task. During the execution of the progress command, the user’s input is being parsed in AddressBookParser. After which, a new ProgressCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “progress”, ProgressCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“progress”).

4. In the ProgressCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of the compulsory fields are missing.

5. The ProgressCommandParser will pass the moduleCode input (found in the ArgumentMultimap) into ParserUtil#parseModuleCode(String moduleCode).

   Note: A NullPointerException will be thrown if the supplied string argument is null.
6. In ParserUtil#parseModuleCode(String moduleCode), the supplied argument will be trimmed using String#trim().
7. ModuleCode#isValidModuleCode(String moduleCode) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new ModuleCode object will be created and returned to the ProgressCommandParser. If the argument is invalid, a ParseException will be thrown.
8. Steps 5 to 7 will be repeated for the “task name” field, by using its respective parse methods in ParserUtil.
9. A new ProgressCommand will be created (using the parsed ModuleCode and Task objects) and returned to the LogicManager.
10. The LogicManager will then call ProgressCommand#execute(Model model).
11. In the ProgressCommand, the model#checkProgress(ModuleCode moduleCode, Task task) will be invoked. This method iterates through each Person object. If the Person has the same ModuleCode and Task assigned to him/her, the Person object and the completion status (either completed/incomplete, denoted by a boolean value) will be added to a LinkedHashMap<Person, boolean>.
12. If the resulting LinkedHashMap is null or empty, a CommandException will be thrown.
13. This LinkedHashMap will be used to generate the output string.
14. The output string will be used in creating a new CommandResult object.
15. Lastly, the CommandResult object will be returned to LogicManager.

DeleteTask Command

Description

The deleteTask command allows users to delete to task that was previously assigned to students. During the execution of the deleteTask command, the user’s input is being parsed in AddressBookParser. After which, a new deleteTaskCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “deleteTask”, DeleteTaskCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word (“deleteTask”).

4. In the DeleteTaskCommandParser#parse(arguments), the arguments will be tokenized into an ArgumentMultimap, by using ArgumentTokenizer#tokenize(String argsString, Prefix... prefixes).

   Note: A ParseException will be thrown if the prefix of StudentId, Index, ModuleCode, and TaskName is missing. Either the pair (consisting of StudentId and Index) or the pair (consisting of ModuleCode and TaskName) must be provided.


5. If either Index or StudentId is given, the indexOrStudentIdGiven(ArgumentMultimap argMultimap) method is invoked.

   Note: A ParseException will be thrown if the prefix of StudentId, or Index is missing. Both StudentId and Index must be provided.


   i. The indexOrStudentIdGiven method will pass the studentId input (found in the ArgumentMultimap) into ParserUtil#parseStudentId(String studentId).

   Note: A NullPointerException will be thrown if the supplied string argument is null.

   ii. In ParserUtil#parseStudentId(String studentId), the supplied argument will be trimmed using String#trim().

   iii. StudentId#isValidId(String studentId) method will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new StudentId object will be created and returned to the DeleteTaskCommandParser. If the argument is not valid, a ParseException will be thrown.

   iv. The indexOrStudentIdGiven method will pass the index input (found in the ArgumentMultimap) into ParserUtil#parseIndex(String oneBasedIndex).

   Note: A NullPointerException will be thrown if the supplied string argument is null.

   v. In ParserUtil#parseIndex(String oneBasedIndex), the supplied argument will be trimmed using String#trim().

   vi. Index#isValidId(String Index) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new Index object will be created and returned to the DeleteTaskCommandParser. If the argument is not valid, a ParseException will be thrown.

   vii. A new DeleteTaskCommand(StudentId studentId, Index index) will be created (using the StudentId and Index object created in Step 3 and 6) and returned to the LogicManager.

6. If either ModuleCode or TaskName is given, the moduleCodeOrTaskNameGiven(ArgumentMultimap argMultimap) method is invoked.

   Note: A ParseException will be thrown if the prefix of ModuleCode, or TaskName is missing. Both ModuleCode and TaskName must be provided.


   i. The moduleCodeOrTaskNameGiven method will pass the moduleCode input (found in the ArgumentMultimap) into ParserUtil#parseModuleCode(String moduleCode).

   Note: A NullPointerException will be thrown if the supplied string argument is null.

   ii. In ParserUtil#parseModuleCode(String moduleCode), the supplied argument will be trimmed using String#trim().

   iii. ModuleCode#isValidModuleCode(String moduleCode) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new ModuleCode object will be created and returned to the DeleteTaskCommandParser. If the argument is not valid, a ParseException will be thrown.

   iv. The moduleCodeOrTaskNameGiven method will pass the taskName input (found in the ArgumentMultimap) into ParserUtil#parseTask(String task).

   Note: A NullPointerException will be thrown if the supplied string argument is null.

   v. In ParserUtil#parseTask(String task), the supplied argument will be trimmed using String#trim().

   vi. Task#isValidTaskName(String test) will then be invoked, which checks if the trimmed argument is valid (according to the Regex supplied). If the argument is valid, a new Task object will be created and returned to the DeleteTaskCommandParser. If the argument is not valid, a ParseException will be thrown.

   vii. A new DeleteTaskCommand(ModuleCode moduleCode, Task task) will be created (using the ModuleCode and Task object created in Step 3 and 6) and returned to the LogicManager.

7. The LogicManager will then call DeleteTaskCommand#execute(Model model).

8. If the both the studentId and index is present then model#deleteTaskOfPerson(StudentId studentId, Index index) method is invoked.

   i. AddressBook#deleteTaskOfPerson(StudentId studentId, Index index)is invoked, which invokes UniquePersonList#deleteTaskOfPerson(StudentId studentId, Index index) method.

   ii. This method will iterate through each Person object in and check for matching studentId. If found, the method will get a copy of the Person object by invoking Person#getCopy(), deletes the task by invoking Person#deleteTask(Index index). If the index is out of bounds, InvalidTaskIndexException() will be thrown by the taskList#deleteTask(Index index) method. If no student with matching studentId is found, PersonNotFoundException() will be thrown.

   iii. The updated Person will be replaced the current Person object.

   iv. If the task is successfully deleted, the model#updateFilteredPersonList(Predicate<Person> predicate) will then be invoked by model#deleteTaskOfPerson(StudentId studentId, Index index) method, which updates the filter of the PersonList to filter by the given PREDICATE_SHOW_ALL_PERSONS.

9. If the both the moduleCode and task is present then model#deleteTaskForAllInModule(ModuleCode moduleCode, Task task) method is invoked.

   i. AddressBook#deleteTaskForAllInModule(ModuleCode moduleCode, Task task)is invoked, which invokes UniquePersonList#deleteTaskForAllInModule(ModuleCode moduleCode, Task task) method.

   ii. This method will iterate through each Person object in and check for matching moduleCode. If found, the method will get a copy of the Person object by invoking Person#getCopy(), deletes the task by invoking Person#deleteTask(Task task). If no task is found, TaskNotFoundException() will be thrown by the taskList#deleteTask(Task task) method. If no student with matching moduleCode is found, ModuleCodeNotFoundException() will be thrown.

   iii. The updated Person will be replaced the current Person object.

   iv. If the task is successfully deleted, the model#updateFilteredPersonList(Predicate<Person> predicate) will then be invoked by model#deleteTaskForAllInModule(ModuleCode moduleCode, Task task) method, which updates the filter of the PersonList to filter by the given PREDICATE_SHOW_ALL_PERSONS.

10. Lastly, the DeleteTaskCommand will create a new CommandResult which CommandResult will be returned to LogicManager.

History Command

Description

The history command displays a list of the user’s previously executed commands. It is facilitated by CommandHistory, which stores the list of commands.

Implementation

1. When the user launches the application, ModelManager is initialised with a new CommandHistory object.

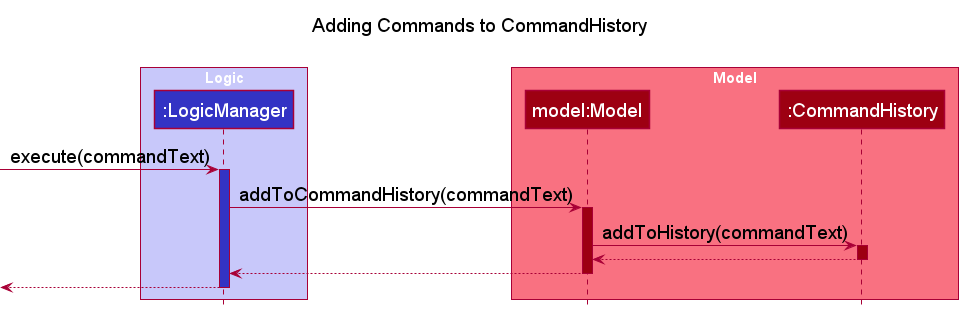

2. Whenever the user successfully executes a command, the LogicManager calls Model#addToCommandHistory(). This adds the command to the list of previously executed commands in CommandHistory.



3. When the user inputs “history”, the LogicManager parses the given input text using AddressBookParser#parseCommand().
4. A new HistoryCommand is created by AddressBookParser and returned to the LogicManager.
5. The LogicManager will then call HistoryCommand#execute(Model model).
6. Following this, the HistoryCommand calls Model#getCommandHistory() to retrieve the list of previously executed commands.
7. The HistoryCommand then calls CommandHistory#display() to convert the list to a String which is returned to LogicManager through a new CommandResult.

Undo Command

Description

The undo command reverts the most recently executed command by restoring TAPA to its previous state before the last command was executed. It is facilitated by AddressBookHistory which saves all the details in TAPA as each command is executed during the current user session.

Implementation

1. When the user launches the application, ModelManager is initialised with a new AddressBookHistory object.

2. Whenever the user successfully executes a command (excluding clear and undo itself), the LogicManager calls Model#saveCurrentAddressBookToHistory(). This adds a copy of TAPA to the list of TAPA’s previous states in AddressBookHistory.



3. When the user inputs “undo”, the LogicManager parses the given input text using AddressBookParser#parseCommand().
4. A new UndoCommand is created by AddressBookParser and returned to the LogicManager.
5. The LogicManager will then call UndoCommand#execute(Model model).
6. Following this, the UndoCommand calls Model#undoAddressBook() to revert the current details stored in TAPA to those stored before the previous command was executed. (Within ModelManager, AddressBookHistory#getPreviousAddressBook is called to retrieve the state of TAPA before the previous command.)
7. Lastly, the UndoCommand creates a new CommandResult which is returned to the LogicManager.

Design considerations

Aspect: How the UndoCommand reverts the changes made by the previous command

• Alternative 1 (current choice): Store the details of TAPA after each successfully executed command, then recover them when undo is executed.
  • Pros: Easy to implement and test.
  • Cons: Will take up more memory with each command executed.
• Alternative 2: Extend each command to be able to revert the changes it has made to TAPA.
  • Pros: Will not incur major performance issues as it uses less memory.
  • Cons: More difficult to implement and test. Each command would need a unique implementation to be undone, and this would also need to be implemented for commands added in the future.

Sort Command

Description

The sort command allows the users to view the list of students in TAPA, sorted by the number of incomplete tasks in descending order. During the execution of the sort command, the user’s input is being parsed in AddressBookParser. After which, a new SortCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.
3. Since the first word in the user input matches the word “sort”, SortCommand() will be called.
4. As SortCommand utilizes the default constructor, it simply returns a new SortCommand object to the AddressBookParser.
5. This SortCommand object will then be subsequently returned to the LogicManager.
6. The LogicManager calls SortCommand#execute(Model model).
7. In SortCommand, the current list of students in TAPA will be sorted by the number of incomplete tasks in descending order by calling model#sortFilteredPersonListByTaskLeft().
8. In SortCommand, the current list of students in TAPA will be updated to reflect the changes to the list, after the sort by calling model#updateFilteredPersonList(PREDICATE_SHOW_ALL_PERSONS).
9. Lastly, the SortCommand will create a new CommandResult, which will then be returned to LogicManager.

Manual Command

Description

The manual command displays the format and a short description for a particular command. During the execution of the manual command, the user’s input is being parsed in ManualCommandParser. After which, a new ManualCommand object will be created, and is subsequently executed by the LogicManager.

Implementation

1. Upon receiving the user input, the LogicManager starts to parse the given input text using AddressBookParser#parseCommand().
2. The AddressBookParser invokes the respective Parser based on the first word of the input text.

3. Since the first word in the user input matches the word “manual”, ManualCommandParser#parse(arguments) will be called. In this case, the arguments refer to the remaining input text after the exclusion of the command word “manual”.

   Note: A ParseException will be thrown if the argument is invalid.
4. The supplied argument will be trimmed using String#trim().
5. The ManualCommandParser will create a new ManualCommand (using the argument in Step 4), which will be returned to LogicManager.
6. The LogicManager will call ManualCommand#execute(Model model). If the argument is invalid, a CommandException will be thrown.
7. Lastly, the ManualCommand will create a new CommandResult which will be returned to LogicManager.

The following sequence diagram shows how the manual command works:

---

Appendix: Requirements

Product scope

Target user profile
Teaching Assistants who:

• Need to manage a significant number of students (especially across multiple modules)
• Prefer desktop apps over other platforms
• Can type fast
• Prefer typing to mouse interactions
• Are reasonably comfortable using CLI apps

Value proposition
TAPA will allow TAs to better manage their student’s contact and progress, especially for TAs who are teaching multiple classes/modules at the same time. It is optimised for use on CLI, and allows for more efficient student detail management for TAs who can type fast.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	Teaching Assistant	add students to TAPA	know which students are taking my classes
* * *	Teaching Assistant	delete a specific student from TAPA	remove student who has withdrawn from the module during the semester
* * *	Teaching Assistant	list students alphabetically	print students in a list as their names would appear on the official class list
* * *	Teaching Assistant	tag students	know what modules they are taking
* * *	Teaching Assistant	filter students by their tags	view the progress of students in each separate tag (different class/module)
* * *	Teaching Assistant	define my own tasks for each module	customise the tasks to each module
* * *	Teaching Assistant	undo the most recent command entered	revert any unwanted changes (such as deleting student) without much trouble
* * *	Teaching Assistant	delete a task given to a student	remove tasks that has incorrect information or has been assigned wrongly
* * *	Teaching Assistant	list the students who have/have not completed a specific task	track the completion status of a specific task
* * *	Teaching Assistant	assign tasks to a specific student	allocate and track a task that is given to the student
* * *	Teaching Assistant who is teaching in multiple semesters	archive the existing data	save a copy on the local machine before undergoing a complete deletion of data
* *	Teaching Assistant	see all the tasks that a student currently has	observe his/her progress
* *	Teaching Assistant	save existing data to hard drive	access the data again when I reopen the app
* *	Teaching Assistant	delete all students from TAPA	remove students that were taught in previous semesters and are no longer relevant
* *	Teaching Assistant	mark/unmark students’ tasks according to the completion status	update his/her progress
* *	Teaching Assistant	see students’ contact details (such as email address)	contact them if needed
* *	Teaching Assistant	find a student	check details of a specific student
* *	Teaching Assistant	display the possible actions that I can take, or do	have a quick reference without the need of reading a user guide
* *	Teaching Assistant	edit the details of the students	fix any errors that occurred during the insertion of student details
* *	Teaching Assistant	delete multiple students from TAPA	remove students that are no longer being taught, without needing to delete them individually
* *	Teaching Assistant	display student progress	see who is lagging behind
* *	Teaching Assistant	update the student’s tags	edit when the student drop/take a new module
* *	Teaching Assistant	sort students by their progress (based on the number of tasks completed)	see how the class is performing
* *	Teaching Assistant	edit details of a task given to a student	update the details of an assignment in case of future changes/extensions
* *	Teaching Assistant	assign tasks to multiple students	allocate tasks to students without having to individually assign them
* *	Teaching Assistant	delete tasks assigned to multiple students	remove any task that has incorrect information without having to individually delete it from each student
*	Teaching Assistant	track attendance	mark attendance for modules that require student attendance
*	Teaching Assistant	see modules I’m teaching at a glance	remind myself of what needs to be prepared for classes
*	Teaching Assistant	see student’s timetable	find a good time to arrange a consult with them
*	Teaching Assistant who is a long time user	type in chain commands	execute multiple different commands quickly
*	Teaching Assistant who is a long time user	send emails from the command line	send emails to students with specific tags quickly
*	Teaching Assistant who is used to CLI commands	customise commands	execute commands quickly
*	Teaching Assistant	view grades scored by students in each assignment	understand which topics they are finding difficult
*	Teaching Assistant	be able to highlight or feature certain students	know which students are performing the best or need more help

Use cases

(For all use cases below, the System is the TAPA and the Actor is the user, unless specified otherwise)

UC01 - Add a student

MSS

1. User requests to add a specific student.

2. TAPA shows the updated list of students.

   Use case ends.

Extensions

• 1a. A student with the same student ID already exists.

  • 1a1. TAPA shows an error message.

    Use case ends.

• 1b. The student ID of the student is not in the input command.

  • 1b1. TAPA shows an error message.

    Use case ends.

• 1c. The name of the student is not in the input command.

  • 1c1. TAPA shows an error message.

    Use case ends.

• 1d. The module code that the student is currently taking is not in the input command.

  • 1d1. TAPA shows an error message.

    Use case ends.

• 1e. The fields specified are in an invalid format.

  • 1e1. TAPA shows an error message.

    Use case ends.

UC02 - Delete a student

MSS

1. User requests to list students.
2. TAPA shows a list of students.
3. User requests to delete a specific student in the list.

4. TAPA deletes the students.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. TAPA shows an error message.

    Use case resumes from step 2.

• 3b. The given student ID is invalid.

  • 3b1. TAPA shows an error message.

    Use case resumes from step 2.

UC03 - Delete all students from a module

MSS

1. User requests to delete all students from a particular module.

2. TAPA deletes the students.

   Use case ends.

Extensions

• 1a. The given module code is invalid.

  • 1a1. TAPA shows an error message.

    Use case resumes from step 1.

• 1b. There are no students taking the module specified by the given module code.

  • 1b1. TAPA shows an error message.

    Use case resumes from step 1.

UC04 - Finding a student

MSS

1. User requests to find students that match the inputted search field.

2. TAPA displays the students who fit the request.

   Use case ends.

Extensions

• 1a. The given student ID is invalid.

  • 1a1. TAPA shows an error message.

    Use case resumes from step 1.

• 1b. The given module code is invalid.

  • 1b1. TAPA shows an error message.

    Use case resumes from step 1.

UC05 - Check all the tasks that a student has

MSS

1. User requests to check all the tasks that a student has.

2. TAPA shows a list of tasks that the student has.

   Use case ends.

Extensions

• 1a. The specified student ID is invalid (not in a correct format).

  • 1a1. TAPA shows an error message.

    Use case ends.

• 1b. There is no student with the specified student ID in TAPA.

  • 1b1. TAPA shows an error message.

    Use case ends.

• 2b. The student does not have any tasks assigned to him/her.

  • 2b1. TAPA shows an error message.

    Use case ends.

UC06 - Marking an undone task as complete

MSS

1. User requests to list students.
2. TAPA shows a list of students.
3. User requests to mark a student’s task as done.

4. TAPA shows the updated list of students.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. If student ID is given, and a student with the given student ID does not exist.

  • 3a1. TAPA shows an error message.

    Use case ends.

• 3b. If the index given is out of range, that is, it is a non-positive number, or greater than the number of tasks assigned to that person.

  • 3b1. TAPA shows an error message.

    Use case ends.

• 3c. The specified task with the given index has already been marked as complete.

  • 3c1. TAPA shows an error message.

    Use case ends.

UC07 - Marking a done task as incomplete

MSS

1. User requests to list students.
2. TAPA shows a list of students.
3. User requests to mark a student’s task as undone.

4. TAPA shows the updated list of students.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. If student ID is given, and a student with the given student ID does not exist.

  • 3a1. TAPA shows an error message.

    Use case ends.

• 3b. If the index is out of range, that is, it is a non-positive number, or greater than the number of tasks assigned to that person.

  • 3b1. TAPA shows an error message.

    Use case ends.

• 3c. The specified task with the given index has already been marked as incomplete.

  • 3c1. TAPA shows an error message.

    Use case ends.

UC08 - Edit a student

MSS

1. User requests to list students.
2. TAPA shows a list of students.
3. User requests edits to the supplied details of a specific student in the list.

4. TAPA updates the details of the student with the supplied details.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. TAPA shows an error message.

    Use case resumes from step 2.

• 3b. The given field is invalid.

  • 3b1. TAPA shows an error message.

    Use case resumes from step 2.

• 3c. The new student ID specified is already in the database.

  • 3c1. TAPA shows an error message.

    Use case resumes from step 2.

UC09 - Save a copy of the data in TAPA

MSS

1. User request to save a copy of the data that is currently being stored in TAPA.
2. TAPA creates a new data file in the same directory as the existing stored data.
3. TAPA copies the content of the existing stored data into the new data file.

Extensions

• 2a. There is already a data file that has the same file name as the new data file that is going to be created.

  • 2a1. TAPA does not create a new data file.

    Use case resumes from step 3.

• 2b. User does not have the permission to create a new file.

  • 2b1. TAPA shows an error message.

    Use case ends.

• 1. There is an unexpected error when copying from the existing data file to the new data file.

  • 3a1. TAPA shows an error message.

    Use case ends.

UC10 - List all students

MSS

1. User requests to list students.

2. TAPA shows a list of students in alphabetical order sorted by their name.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

UC11 - Assign a task to a student

MSS

1. User requests TAPA to assign a task to a student. (This can be done for an individual student or for all students taking the same module)

2. TAPA shows the updated list of students.

   Use case ends.

Extensions

• 1a. If studentId is given, and a student with the given studentId does not exist.

  • 1a1. TAPA shows an error message.

    Use case ends.

• 1b. If module code is given and no student is taking a module with the given module code.

  • 1b1. TAPA shows an error message.

    Use case ends.

• 1c. The student has already been assigned with a task that has the same name.

  • 1c1. TAPA shows an error message.

    Use case ends.

UC12 - View the completion status of a particular task

MSS

1. User request to view which students (in a particular module) have completed or have yet to complete a particular task.
2. TAPA shows a list of students who are taking this module and are currently assigned with the specified tasks (along with their respective completion status).

Extensions

• 1a. The specified task name is invalid (not in a correct format).

  • 1a1. TAPA shows an error message.

    Use case ends.

• 1b. The specified module code is invalid (not in a correct format).

  • 1b1. TAPA shows an error message.

    Use case ends.

• 2a. There are no students who are taking this module and are assigned with the specified task.

  • 2a1. TAPA shows an error message.

    Use case ends.

UC13 - Delete a task assigned to a student

MSS

1. User requests to list students.
2. TAPA shows a list of students.
3. User requests to delete a task that was assigned to a student. (This can be done for an individual student or for all the students taking the same module.)

4. TAPA updates the details of the student with the supplied details.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. If studentId is given, and a student with the given studentId does not exist.

  • 3a1. TAPA shows an error message.

    Use case ends.

• 3b. If the value of the specified index is less than 1 or greater than the number of tasks assigned to that student.

  • 3b1. TAPA shows an error message.

    Use case ends.

• 3c. If module code is given and no student is taking a module with the given module code.

  • 3c1. TAPA shows an error message.

    Use case ends.

• 3d. The task name already is assigned to the present.

  • 3d1. TAPA shows an error message.

    Use case ends.

UC14 - Sorting list of students by their number of incomplete tasks in descending order

MSS

1. User requests to sort students.

2. TAPA shows a list of students in order, sorted by their number of incomplete tasks in descending order.

   Use case ends.

• 2a. The list is empty.

  Use case ends.

UC15 - Finding out what a certain command does

MSS

1. User requests TAPA to provide a description for a particular command, as well as how to use the command.
2. TAPA provides a short description of what the specified command does.
3. TAPA provides the format for how to use the command.

4. TAPA provides an example to show the user how to use the command.

   Use case ends.

Extensions

• 1a. The user does not input a specific command.

  • 1a1. TAPA provides the list of all available commands.

    Use case ends.

• 1b. The user inputs a command that is not valid (not in the existing list of commands)

  • 1b1. TAPA shows an error message.

    Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 students without a noticeable sluggishness in performance for typical usage.
3. Usage should be more efficient than a regular contact management application for a user who types fast in English text.
4. Should be usable by a novice who has never used a contact management application before.
5. The system should respond within 3 seconds.
6. The student’s data should only be stored locally.

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• Module: A specific class that a student is taking
• Tag: A category that the student belong to (usually denotes the module that is currently being taken)
• Person: A student in TAPA
• Student ID/Matriculation number: Used interchangeably to refer to the unique identification number of a student

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder.

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. Shutdown

   1. Shut down TAPA using the exit command.

      Expected: TAPA exits immediately.

Adding a student

1. Adding a student to TAPA

   1. Prerequisites: Sample data is loaded in TAPA.

   2. Test case: add i/A0000000Z m/CS2100 n/Test
      Expected: No student is added as there is already another student in TAPA who has the same student ID. Error message will be displayed to the user.

   3. Test case: add m/CS2100 n/Test, add i/AXXXXXXXR m/CS2100, add i/AXXXXXXXR n/Test
      Expected: No student is added due to missing compulsory fields. Error message will be displayed to the user.

   4. Test case: add i/AXXXXXXXR m/CS2100 n/Test
      Expected: Student is added into TAPA, even if some/all optional fields are missing.

   5. Test case: add i/A!@#$%^&R m/CS2100 n/Test
      Expected: No student is added due to invalid format for student ID. Error message will be displayed to the user.

   6. Other incorrect add commands to try: add i/AXXXXXXXR m/CS2@00 n/Test, add i/AXXXXXXXR m/CS2100 n/T@st
      Expected: Similar to previous

Deleting students by index or student ID

1. Deleting a student(s) using their index while all students are being shown

   1. Prerequisites: List all students using the list command. Multiple students in the list.

   2. Test case: delete 1
      Expected: First student is deleted from the list. Details of the deleted student shown in the status message.

   3. Test case: delete 1 2
      Expected: First and second students are deleted from the list. Status message states that 2 students were deleted.

   4. Test case: delete 0
      Expected: No student is deleted. Error details shown in the status message.

   5. Test case: delete 0 1
      Expected: No student is deleted. Error details shown in the status message.

   6. Test case: delete
      Expected: No student is deleted. Error details shown in the status message.

   7. Test case: delete -1
      Expected: No student is deleted. Error details shown in the status message.

   8. Test case: delete x, where x > number of students in the list
      Expected: No student is deleted. Error details shown in the status message.

2. Deleting a student using their student ID

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. One student has “A0000000Z” as their student ID.
      3. No student has “A9999999X” as their student ID.

   2. Test case: delete i/A0000000Z
      Expected: The student with student ID “A0000000Z” deleted from the list. Details of the deleted student shown in the status message.

   3. Test case: delete i/A9999999X
      Expected: No student is deleted. Error details shown in the status message.

   4. Test case: delete i/@@@
      Expected: No student is deleted. Error details shown in the status message.

   5. Test case: delete i/
      Expected: No student is deleted. Error details shown in the status message.

   6. Test case: delete
      Expected: No student is deleted. Error details shown in the status message.

Deleting students by module code

1. Deleting students by module code

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. One or more students have “CS2100” as their module code.
      3. No students have “CS9999” as their module code.

   2. Test case: deleteModule m/CS2100
      Expected: The students with module code “CS2100” are deleted from the list. Status message states number of students deleted.

   3. Test case: deleteModule m/CS9999
      Expected: No student is deleted. Error details shown in the status message.

   4. Test case: deleteModule m/@@@
      Expected: No student is deleted. Error details shown in the status message.

   5. Test case: deleteModule m/
      Expected: No student is deleted. Error details shown in the status message.

   6. Test case: deleteModule
      Expected: No student is deleted. Error details shown in the status message.

   7. Test case: deleteModule m/CS CS
      Expected: No student is deleted. Error details shown in the status message.

Finding students

1. Finding a student using their name

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. One or more students have “John” in their name.
      3. No students have “Dueet” in their name.

   2. Test case: find n/John
      Expected: All students with “John” in their names (but not Johnathan, Johnny etc) are listed. Status message states how many students were listed.

   3. Test case: find n/Dueet
      Expected: Student list displays no results. Status message states that 0 students were listed.

   4. Test case: find n/John i/AAA
      Expected: Find command not executed. Error details shown in the status message.

   5. Test case: find n/@@@
      Expected: Find command not executed. Error details shown in the status message.

   6. Test case: find n/
      Expected: Find command not executed. Error details shown in the status message.

   7. Test case: find
      Expected: Find command not executed. Error details shown in the status message.

2. Finding a student using their student ID

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. One student has “A0000000Z” as their student ID.
      3. No student has “A9999999X” as their student ID.

   2. Test case: find i/A0000000Z
      Expected: The student with student ID “A0000000Z” is listed. Status message states that one student was listed.

   3. Test case: find i/A9999999X
      Expected: No students listed. Status message states that 0 students were listed.

   4. Test case: find i/A0000000Z n/John
      Expected: Find command not executed. Error details shown in the status message.

   5. Test case: find i/@@@
      Expected: Find command not executed. Error details shown in the status message.

   6. Test case: find i/
      Expected: Find command not executed. Error details shown in the status message.

   7. Test case: find
      Expected: Find command not executed. Error details shown in the status message.

3. Finding a student using their module code

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. One or more students have “CS2100” as their module code.
      3. No student has “CS9999” as their module code.

   2. Test case: find m/CS2100
      Expected: All students with “CS2100” as their module code are listed. Status message states how many students were listed.

   3. Test case: find m/CS9999
      Expected: No students listed. Status message states that 0 students were listed.

   4. Test case: find m/CS2100 i/A0000000Z
      Expected: Find command not executed. Error details shown in the status message.

   5. Test case: find m/@@@
      Expected: Find command not executed. Error details shown in the status message.

   6. Test case: find m/
      Expected: Find command not executed. Error details shown in the status message.

   7. Test case: find
      Expected: Find command not executed. Error details shown in the status message.

Assigning task(s) to students

1. Assigning task(s) to students by their student ID

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. The student associated with the student ID (“A0000000Z”) has a task (Task A) assigned to him/her.

   2. Test case: assign, assign i/A1111111Z, assign tn/Task A
      Expected: An error message will be displayed to the user, due to missing compulsory fields (student ID and task name).

   3. Test case: assign i/A!@#$%^&R tn/Task A, assign i/A1111111Z tn/@@@@
      Expected: An error message will be displayed to the user, due to invalid format for student ID or task name.

   4. Test case: assign i/AXXXXXXXR tn/Task A
      Expected: An error message will be displayed to the user, as there are no students associated with this student ID in TAPA.

   5. Test case: assign i/A0000000Z tn/Task A
      Expected: An error message will be displayed to the user, as the task (Task A) has already been assigned to the student associated with the student ID (“A0000000Z”).

   6. Test case: assign i/A0000000Z tn/Task B
      Expected: The list of students in TAPA will be updated, with the task (Task B) being assigned to the student associated with the student ID (“A0000000Z”).

2. Assigning task(s) to students by their module code

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. The students associated with the student ID (“A0000000Z”) and (“A1111111Z”) has a task (Task A) assigned to them.
      3. The student associated with the student ID (“A5555555Z”) has the same module code (CS2100) as the student associated with the student ID (“A0000000Z”).

   2. Test case: assign, assign m/CS2100, assign tn/Task A
      Expected: An error message will be displayed to the user, due to missing compulsory fields (module code and task name).

   3. Test case: assign m/CS@@@@ tn/Task A, assign m/CS2100 tn/@@@@
      Expected: An error message will be displayed to the user, due to invalid format for module code or task name.

   4. Test case: assign m/LAM1201 tn/Task A
      Expected: An error message will be displayed to the user, as there are no students associated with this module code in TAPA.

   5. Test case: assign m/CS2101 tn/Task A
      Expected: An error message will be displayed to the user, all the students with the module code (CS2101) already has the specified task (Task A) assigned to them.

   6. Test case: assign m/CS2100 tn/Task A
      Expected: The list of students in TAPA will be updated, with the task (Task A) being assigned to the student associated with the student ID (“A5555555Z”). A message will be displayed to the user, informing that the task is only assigned to some of the students in the module (CS2100).

   7. Test case: assign m/CS2100 tn/Task B
      Expected: The list of students in TAPA will be updated, with the task (Task B) being assigned to the students associated with the module code (CS2100).

Checking all the tasks that a student has

1. Checking all the tasks that a student has

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. The student associated with the student ID (“A0000000Z”) has a task assigned to him/her.

   2. Test case: task
      Expected: An error message will be displayed to the user, due to missing compulsory field (student ID).

   3. Test case: task i/A!@#$%^&R
      Expected: An error message will be displayed to the user, due to invalid format for student ID.

   4. Test case: task i/AXXXXXXXR
      Expected: An error message will be displayed to the user, as there are no students associated with this student ID in TAPA.

   5. Test case: task i/A1111111Z
      Expected: An error message will be displayed to the user, as there are no tasks assigned to this student.

   6. Test case: task i/A0000000Z
      Expected: An output list will be displayed to the user, which consists of all the tasks (“Task A”) that are assigned to the student.

Marking an incomplete task as complete

1. Marking an incomplete task as complete

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. The student associated with the student ID (“A0000000Z”) has an incomplete task assigned to him/her, and the task is the first and only one on his/her task list.
      3. The student associated with the student ID (“A1111111Z”) has a complete task assigned to him/her, and the task is the first and only one on his/her task list.

   2. Test case: mark, mark i/A0000000Z, mark idx/1
      Expected: An error message will be displayed to the user, due to missing compulsory fields (student ID and task index).

   3. Test case: mark i/A!@#$%^&R idx/1, mark i/A0000000Z idx/0, mark i/A0000000Z idx/-1
      Expected: An error message will be displayed to the user, due to invalid format for student ID or task index.

   4. Test case: mark i/A0000000Z idx/3
      Expected: An error message will be displayed to the user, due to the task index being out of range.

   5. Test case: mark i/A1111111Z idx/1
      Expected: An error message will be displayed to the user, due to the task being already marked as complete.

   6. Test case: mark i/A0000000Z idx/1
      Expected: The list of students in TAPA will be updated, with the first task belonging to the student associated with the student ID (“A0000000Z”) marked as complete.

Marking a complete task as incomplete

1. Marking a complete task as incomplete

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. The student associated with the student ID (“A0000000Z”) has an incomplete task assigned to him/her, and the task is the first and only one on his/her task list.
      3. The student associated with the student ID (“A1111111Z”) has a complete task assigned to him/her, and the task is the first and only one on his/her task list.

   2. Test case: unmark, unmark i/A0000000Z, unmark idx/1
      Expected: An error message will be displayed to the user, due to missing compulsory fields (student ID and task index).

   3. Test case: unmark i/A!@#$%^&R idx/1, unmark i/A0000000Z idx/0, unmark i/A0000000Z idx/-1
      Expected: An error message will be displayed to the user, due to invalid format for student ID or task index.

   4. Test case: unmark i/A0000000Z idx/3
      Expected: An error message will be displayed to the user, due to the task index being out of range.

   5. Test case: unmark i/A0000000Z idx/1
      Expected: An error message will be displayed to the user, due to the task being already marked as incomplete.

   6. Test case: unmark i/A1111111Z idx/1
      Expected: The list of students in TAPA will be updated, with the first task belonging to the student associated with the student ID (“A1111111Z”) marked as incomplete.

Viewing the completion status of a particular task

1. Viewing the completion status of a particular task among students in a particular module

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. All students taking the module (“CS2100”) are being assigned with a task (“Task A”).

   2. Test case: progress, progress m/CS2100, progress tn/Task A
      Expected: An error message will be displayed to the user, due to missing compulsory fields (module code and task name).

   3. Test case: progress m/CS@@@@ tn/Task A, progress m/CS2100 tn/T@sk @
      Expected: An error message will be displayed to the user, due to invalid format for module code/task name.

   4. Test case: progress m/CS2100 tn/Task B
      Expected: An error message will be displayed to the user, as no students who are taking “CS2100” are assigned with “Task B”.

   5. Test case: progress m/CS2100 tn/Task A
      Expected: An output list will be displayed to the user, which consists of all students (and their respective completion status) who are taking “CS2100” and are assigned with “Task A”.

Sorting the list of students in TAPA by the number of incomplete tasks in descending order

1. Sorting the list of students in TAPA by the number of incomplete tasks in descending order

   1. Prerequisites: Sample data is loaded in TAPA.

   2. Test case: sort
      Expected: The list of students in TAPA will be updated, and the students will be in order by the number of incomplete tasks in descending order.

Displaying a manual guide for TAPA

1. Display the format, example, and a short description for a specified command

   1. Prerequisites: No prerequisites required

   2. Test case: manual @@@@, manual sleep
      Expected: An error message will be displayed to the user, due to the specified command not existing.

   3. Test case: manual add
      Expected: The format, example, and a short description for the command add will be displayed.

2. Displays all possible commands

   1. Prerequisites: No prerequisites required

   2. Test case: manual
      Expected: All possible commands are listed out.

Archiving details

1. Saving a copy of the details currently saved in TAPA into a separate file

   1. Prerequisites: Sample data is loaded in TAPA.

   2. Test Case: archive
      Expected: A new .json file is created in /data, with the same contents as the original .json data file.

2. Saving a copy of the details currently saved in TAPA into a separate file

   1. Prerequisites:
      1. Sample data is loaded in TAPA.
      2. Remove the data directory’s (/data) read and write permissions.
   2. Test case: archive
      Expected: An error message will be displayed to the user, due to errors in creating/writing to a new .json file.

Saving data

1. Dealing with corrupted entries

   1. The data files can be found in the data folder of the repository, and will be named addressbook.
   2. Modify the first entry in the data file, by deleting the word “Name” from it.
   3. Restart the application. Expected: TAPA will display an empty list.

2. Dealing with missing entries

   1. The data files can be found in the data folder of the repository, and will be named addressbook.
   2. Remove all entries from the data file.
   3. Restart the application. Expected: TAPA will display an empty list.

3. Dealing with missing data file

   1. The data files can be found in the data folder of the repository, and will be named addressbook.
   2. Delete addressbook.json.
   3. Restart the application. Expected: A new data file will be created, and TAPA will populate it with sample data entries. This list of sample entries will be displayed to the user as well.
